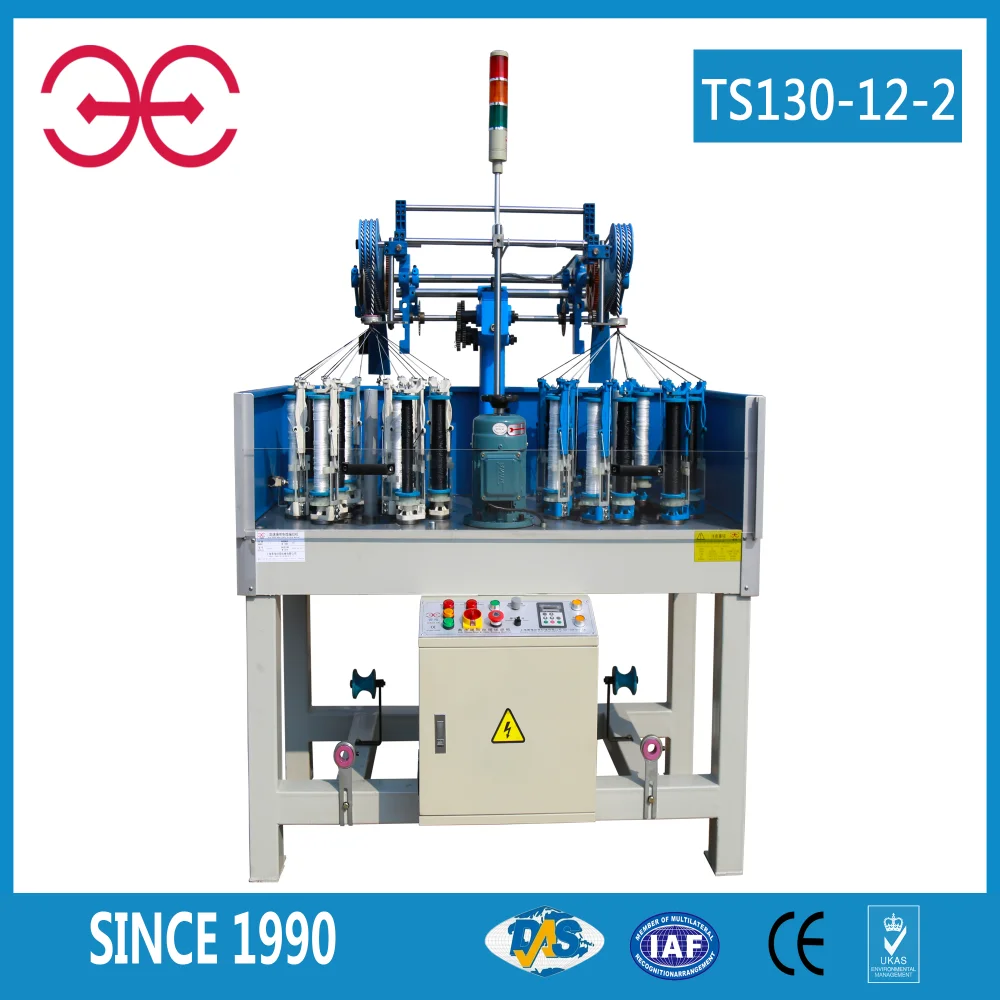

12spindle hight speed rope braiding machine

FOB Reference Price:Get Latest Price
US $3,000-6,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Xianghai
Model Number:
TS130-12-2
Bobbin Size::
70x210mm
Motor Power:
0.75KW
Horn gear size:
130mm
Certificate:
ISO9001-2008
Operation:
Simple
Inverter:
HOLIP
Machine Series(Model):
130eries
Material Capabilities:
1.2 Meter/min/head
Head qty::
2head
spindle qty:
12spindle
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
800 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden box.
Port
Shanghai
Lead Time :
10 days
Product Description

Product Application

 12Spindles Rubber Elastic Loop String Hair Tie Braiding Machine

Application of braiding products:
high quality string, twine, fishing line, suture line, jacquard harness cord, mobile phone lanyard, elastic cord, racket line, dental floss, accessories rope etc.

Braiding materials:
cotton yarn, PP, PE, polyester, nylon, dyneema, high polymer material, composite material etc.

SPECIFICATIONS FOR 90TYPE BRAIDING MACHINE
Model
Measurement
(mm)
Power
(mm)
Bobbin Size
(mm)
Weight
(kg)
RopenDia
(mm)
90-12/4
980*950*1700
0.75
43*140/48*140
400
0.1-8
90-16-2
1100*700*1700
0.75
43*140/48*140
330
0.1-8
90-16/4square
1080*950*1700
0.75
43*140/48*140
450
0.1-8
90-16/4length
1780*750*1700
0.75
43*140/48*140
460
0.1-8
90-24/2
1250*850*1700
0.75
43*140/48*140
450
0.5-12
90-32/2
1370*950*1700
0.75
43*140/48*140
500
1-15
90-36/2
1420*980*1700
1.1
43*140/48*140
520
1-15
90-40/2
1650*900*1700
1.1
43*140/48*140
550
2-16
90-44/1
1050*950*1700
0.75
43*140/48*140
570
2-20
90-48/1
1100*980*1750
0.75
43*140/48*140
580
3-20
90-48/2
1850*950*1700
1.1
43*140/48*140
550
3-20
90-56/1
1200*1050*1750
1.1
43*140/48*140
600
3-20
90-64/1
1300*1200*1750
1.1
43*140/48*140
650
4-25
90-72/1
1450*1300*1800
1.5
43*140/48*140
670
4-25
90-96/1
1700*1500*1900
1.5
43*140/48*140
750
5-30
90-120/1
2250*2250*1900
1.5
43*140/48*140
750
8-35

Main Features

1) The Machine is High speed and still noiseless.

2) Space saving, because of compact design.

3) The yarn packages, generally available in cone form, can directly mounted on creel and fed to the machine.

4) Stop motion fitted for detecting the yarn.

5) Density of produced cord is adjustable by change pitch gears system.

6)make different size of products by changing the pitch gears.

7)adopting frequency control motor which is easy to control the speed.

8)auto stop system has a sensitive reaction, when the yarn is over or breaks, the machine will stop automatically, which reduce the waste of the yarn. So when there is nobody works near the machine, it is also safe. This device lower the labor cost and increase the production.

Certifications
Detailed Images

Machine Parts

Name: Grooved pulley

Brand: XIANGAHI

Original: China


Machine Parts

Name: Taumelscheibe
Brand: XIANGHAI
Original: China

Machine Parts

Name: Supply frame
Brand: XIANGHAI
Original: China

Machine Parts

Name:  Rubber Drive
Brand: XIANGHAI
Original: China

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
1780 (L) * 750 (W) * 1700 (D)
Weight
1.65 T



Packaging Details
Owing to the sound industry experience, we have been successful in catering to the requirements of our esteemed clients by offering quality Pine Wood Packing Cases. These are designed and made by the experts using premium grade pine wood that are ideal for various heavy duty applications.
Related Products

12 spindle braiding machine

81.7% Response Rate

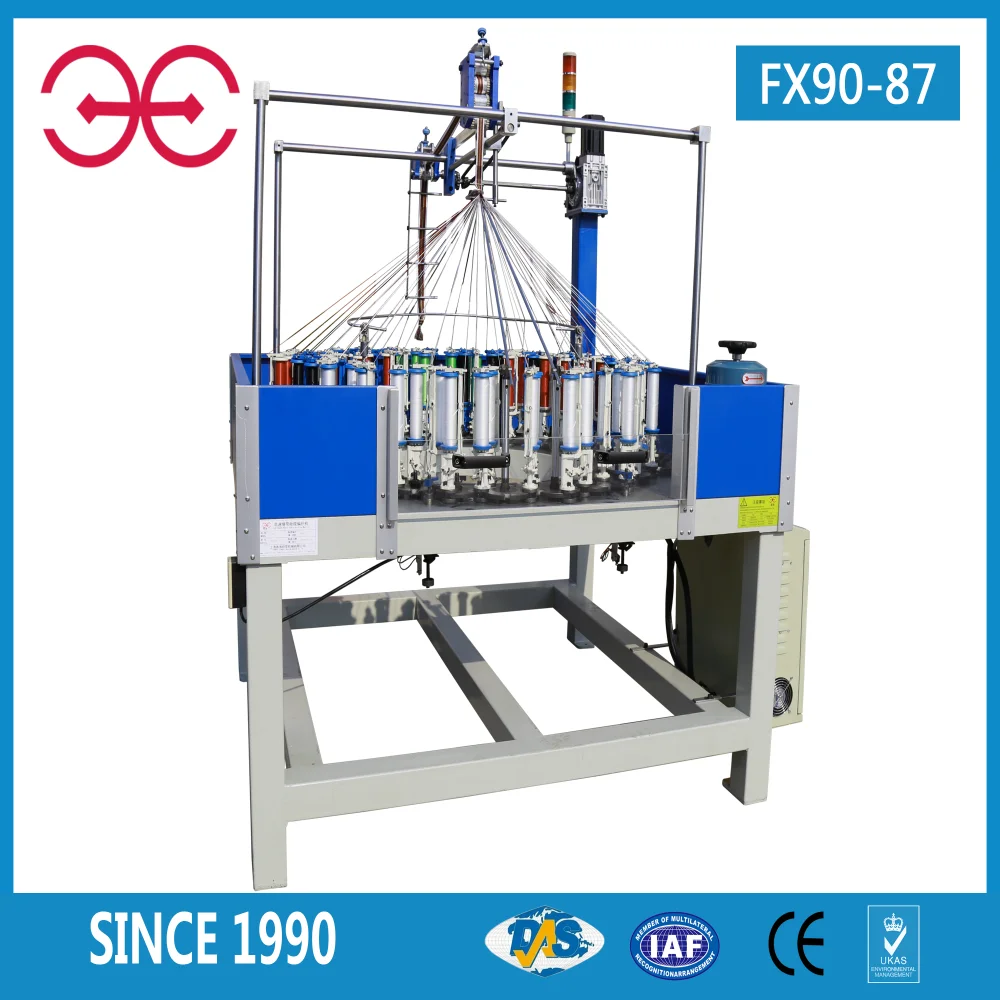

87 spindle braiding machine
